Sensor Beacons
Environmental condition sensors and sensors for presence and motion detection are implemented in a wide variety of use cases. The monitoring of environmental conditions with infsoft Room Environment can improve room climate and ultimately employee health and productivity. Moreover, sensors can be used for infsoft Occupancy in order to monitor workspace occupancy over time and determine available meeting rooms and workplaces.
Types of Sensor Beacons
Sensor beacons can be equipped with a variety of functions and come in a lot of different shapes and sizes. Below is an overview of the most commonly implemented sensor types.
Temperature / Humidity
Beacons equipped with temperature and humidity sensors enable reliable room climate monitoring, for example in office
buildings.
Door Sensor
Door sensors can detect if a door or window is open or closed and can determine how often the door/window has been opened within a certain time period.

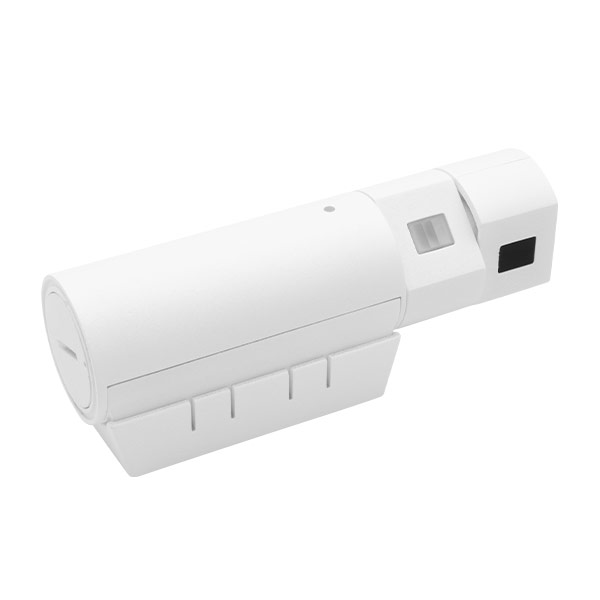

PIR/TOF Sensor
PIR/TOF Sensors combine two technologies for occupancy monitoring. The hybrid approach enables more accurate
occupancy analyses.
Motion Beacon
The Motion Beacon detects vibrations to identify occupancy at desks or chairs. It can also be used as an asset tag for inventory
tracking.
Water-Leak Sensor
Water-Leak Sensors can be used to monitor water leaks, especially in critical environments such as archive or server rooms, enabling early detection.
Car Park Sensor
Car Park Sensors detect changes in the magnetic field caused by parked cars. They are used to report the occupancy of individual car parks.
Functionality of Sensor Beacons

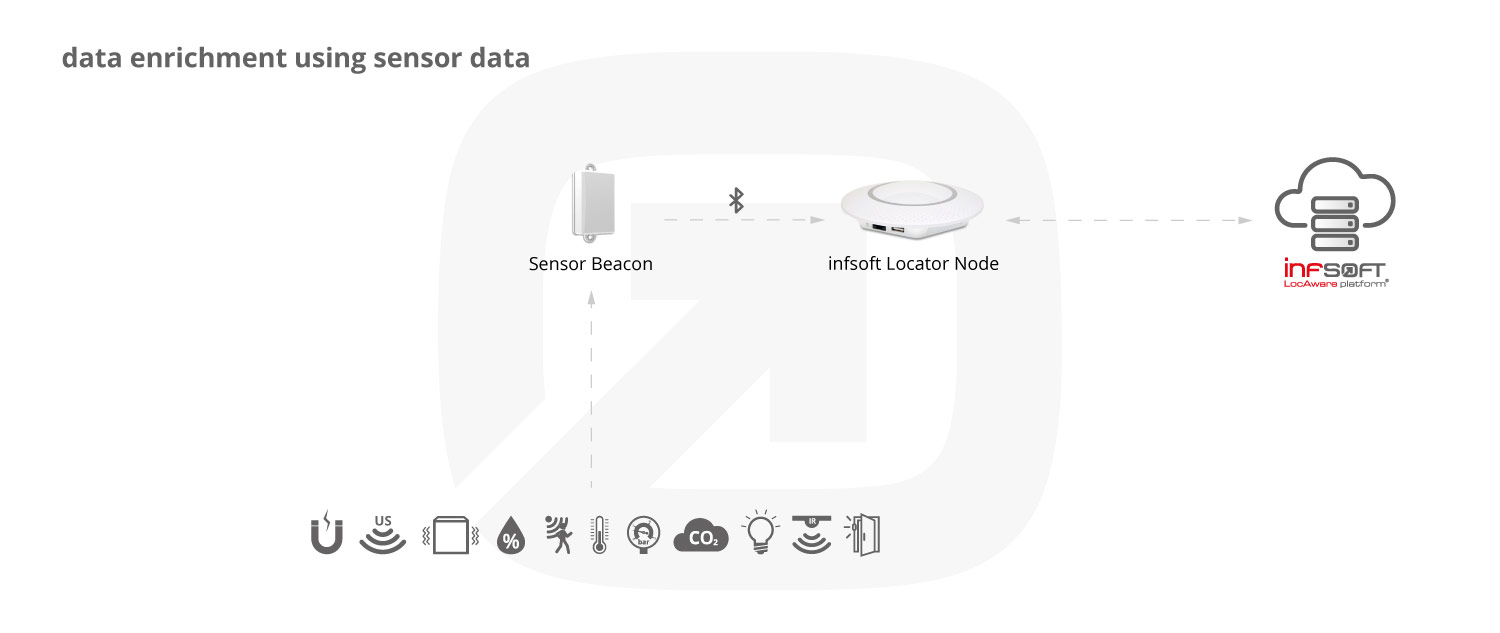

Sensor tags can be installed throughout the building to monitor the conditions. The data can then be trasmitted via Bluetooth Low Energy to an infsoft Locator Node Dongle and forwarded to the infsoft LocAware platform® where the data is intelligently processed. The information is then visualized and analyzed in infsoft Sensors.
Technical Features of Sensor Beacons
- Dimensions (LxWxH): 70.6 mm x 38 mm x 17.8 mm
- Weight: 37.5 g
- Sensors: Bluetooth Low Energy (BLE) 5, 2.4 GHz
- Battery: Alkaline battery, 1000 mAh
- Broadcasting range: 100 m
- Waterproof: IP66
- Certification: CE, FCC
Product Sheet Temperature and Humidity Sensor
- Dimensions (LxWxH): 55 mm x 26.2 mm x 13 mm and 38.5 mm x 12.5 mm x 11 mm
- Weight: 26.6 g (including battery)
- Sensors: Bluetooth Low Energy (BLE), 2.4 GHz
- Battery: 230 mAh
- Broadcasting range: 100 m
- Certification: CE, FCC
Product Sheet Door Sensor
- Dimensions (LxW): 110 mm x 34 mm
- Weight: 75 g
- Sensors: Bluetooth Low Energy (BLE) 5, 2.4 GHz
- Battery: Lithium Battery, 2700 mAh
- Installation: magnetic mount
- Broadcasting range: 150 m
- TOF Parameters:
- FOV: 27°
- Measurement Range: 20 mm – 2500 mm
- PIR Parameters:
- FOV: horizontal 100°; vertical 20°
- Sensing Distance: 3.0 m
- Certification: CE, FCC
Product Sheet PIR/TOF Sensor
- Dimensions: Φ39 mm x 15.5 mm
- Weight: 20.2 g
- Sensors: Bluetooth Low Energy (BLE) 5, 2.4 GHz
- Battery: CR2477, 1000 mAh
- IP Rating: IP67
- Certification: CE, FCC
- Features: accelerometer
- Dimensions (LxWxH): 70.6 mm x 38 mm x 17.8 mm; 1m (probe line length)
- Weight: 65 g
- Operating Temperature: 5°C ~ +50°C
- Operating Humidity: 0 ~ 95% RH, no condensation
- Battery: 2*AAA alkaline battery
- Certification: CE, FCC
Product Sheet Water-Leak Sensor
- Dimensions (LxB): 175 mm x 38 mm
- Weight: 290 g (with battery)
- Sensors: Bluetooth Low Energy (BLE) 5, 2.4 GHz
- Operating Range: 150 – 300 m
- Installation: Floor mounting
- Waterproof: IP67
- Operating Temperature: -20°C – +60°C
- Operating Humidity: 0 ~ 99% RH
- Certification: CE, FCC
